Tyvek / Tyvek® 600 Plus

model CHA5

Tyvek® 600 Plus

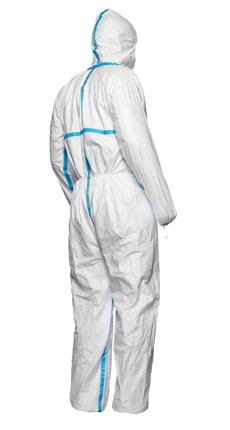

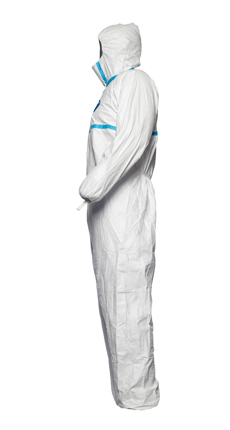

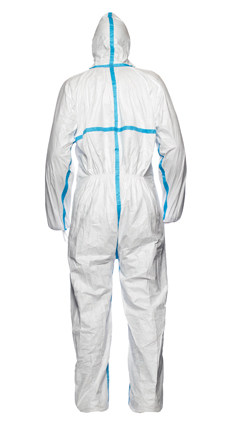

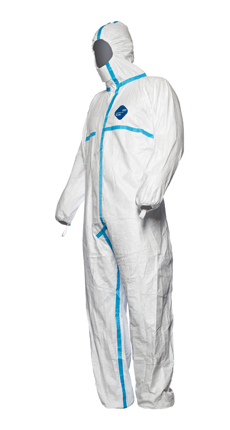

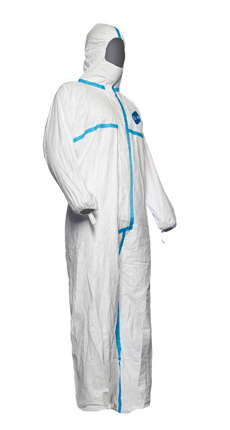

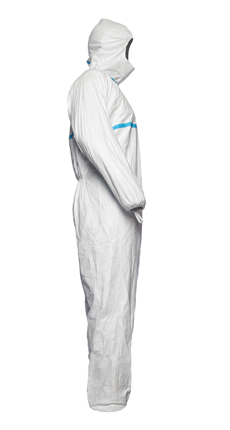

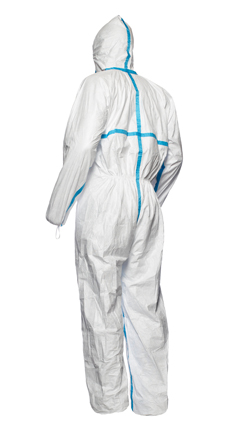

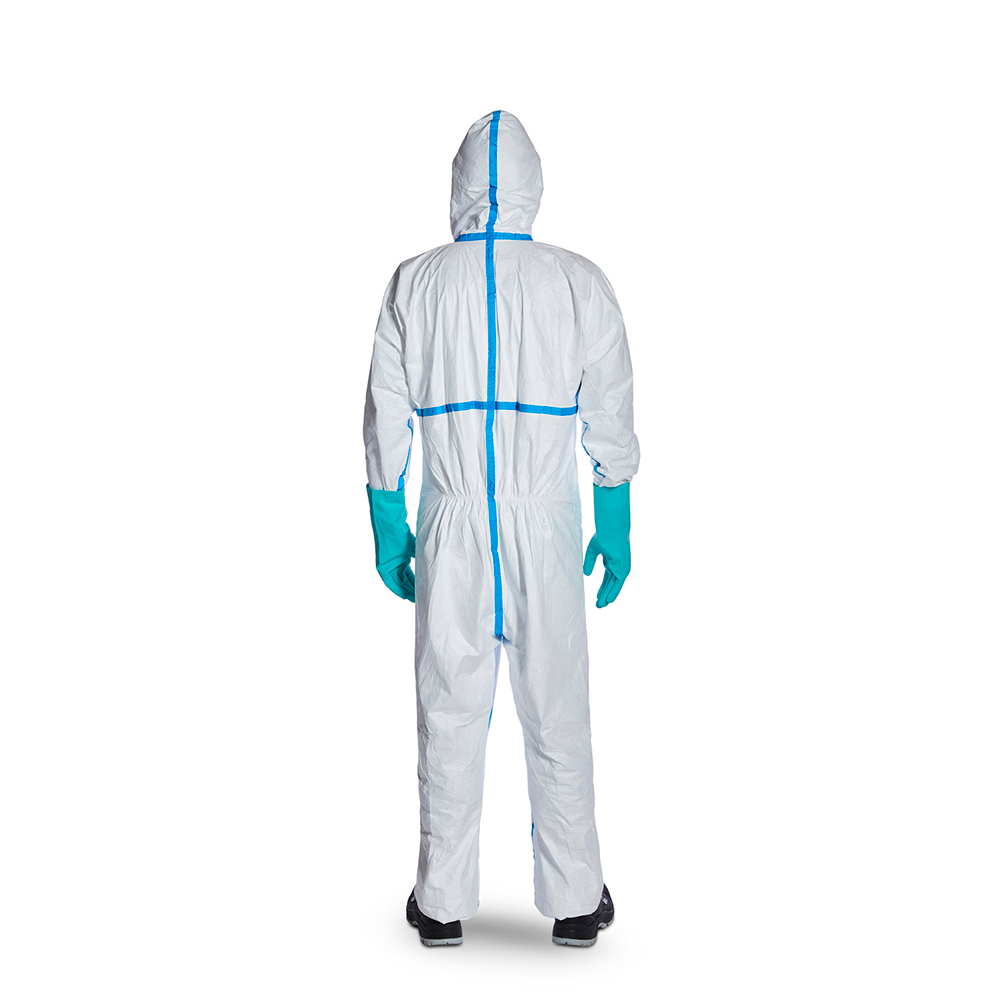

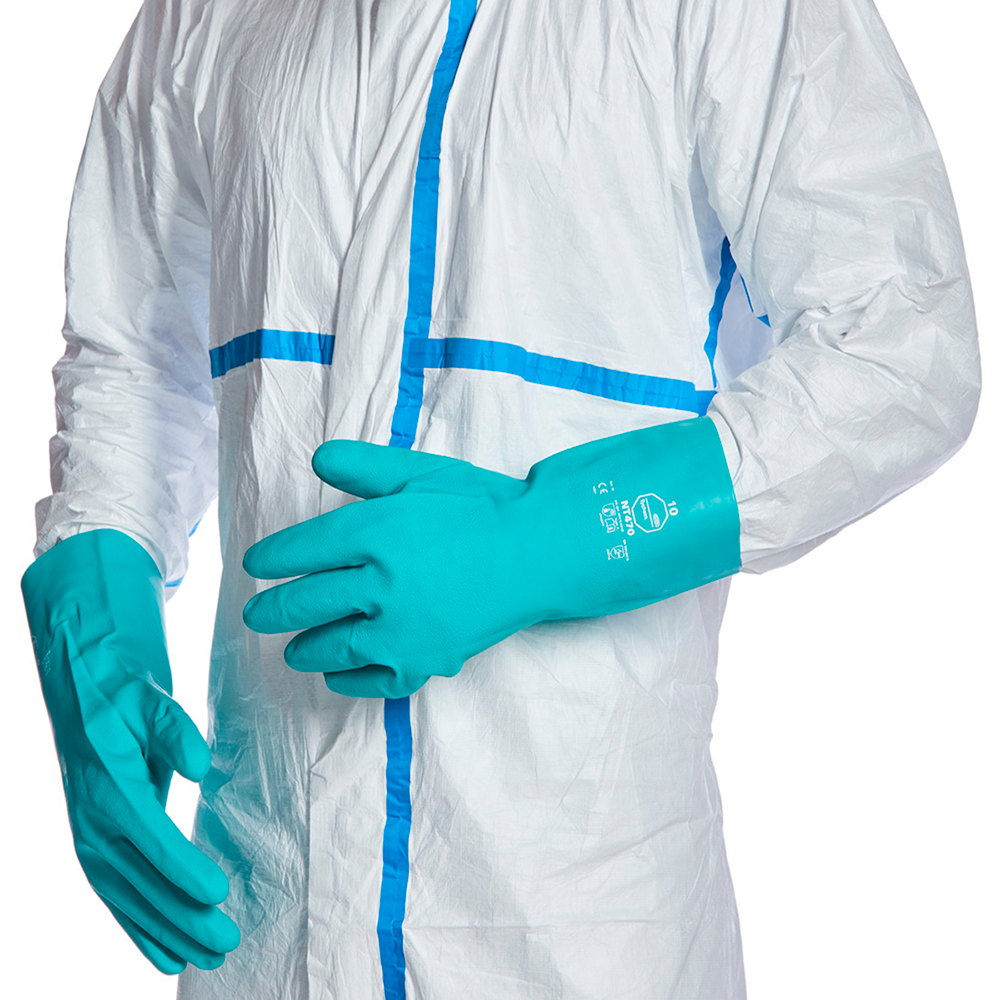

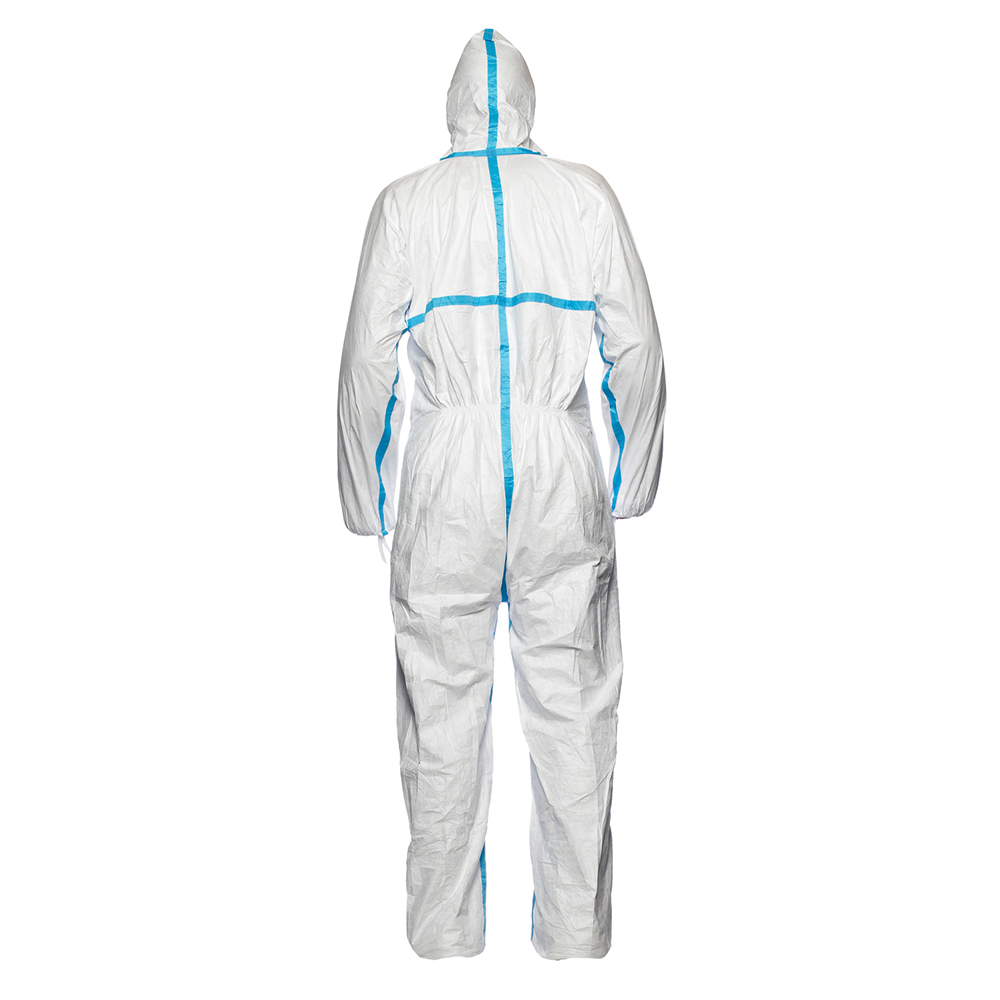

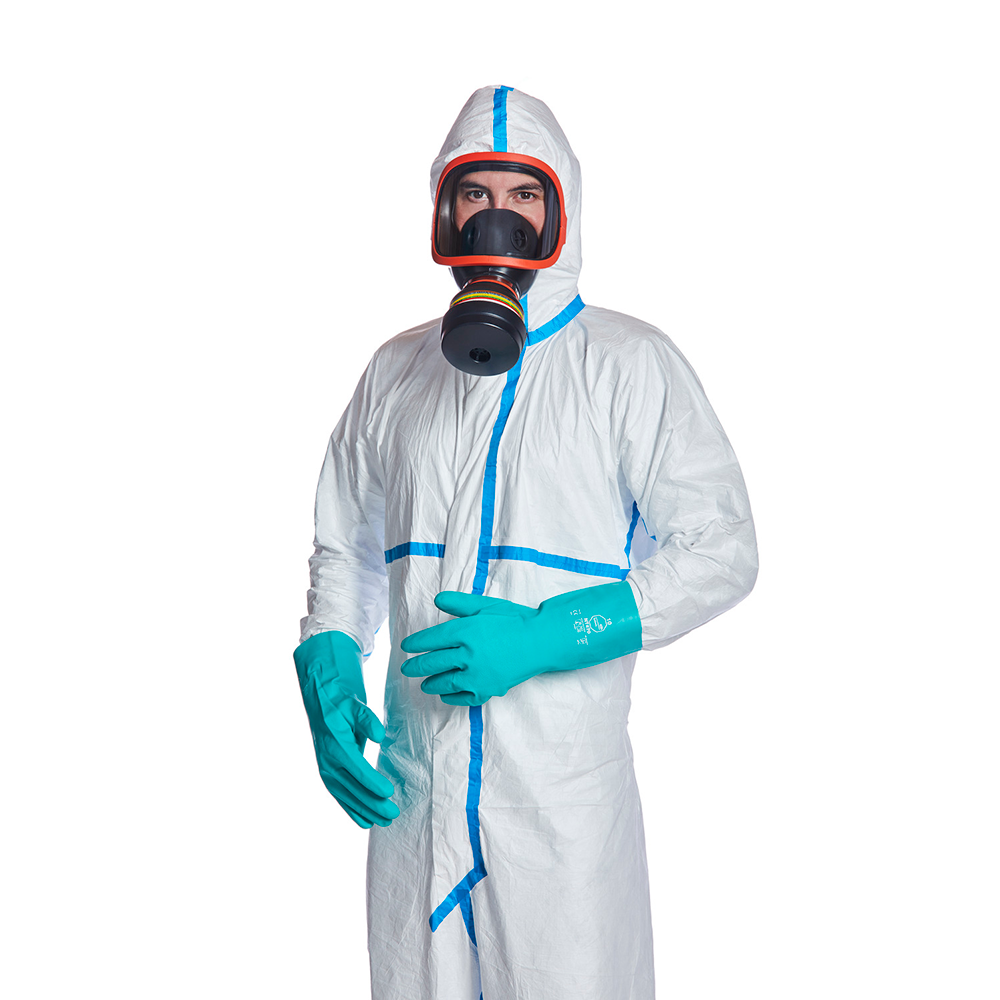

DuPont™ Tyvek® 600 Plus. Hooded coverall. Stitched and over-taped seams. Thumb loops. Tunnelled elastication at wrists, ankles and face. Elasticated waist (glued-in). Tyvek® zipper. Self-adhesive zipper and chin flap. White.




Hover over image to zoom

CATIII

T4

T5

T6

EN 1073-2

EN 1149-5

EN 14126

Name Description
Full Part Number TYVCHA5TWH00
Fabric/Materials Tyvek® 600
Design Hooded coverall with elastics and thumb loops
Seam Stitched and over-taped, blue
Color White
Sizes XS, SM, MD, LG, XL, 2X, 3X, 4X, 5X, 6X, 7X
Quantity/Box 100 per box, individually packed

FEATURES & PRODUCT DETAILS

DuPont™ Tyvek® 600 Plus. Hooded coverall available in white, in sizes XS to 7X (a green garment is also available). Robust yet lightweight (<250g per garment). Self-adhesive chin flap for tight seal of suit to the mask. Elasticated face, wrists and ankles as well as glued-in waist elastic. Elasticated thumb loops prevent sleeves from riding up.
Tyvek® garments are composed of flash spun high density polyethylene, providing an ideal balance of protection, durability and comfort. Tyvek® is permeable to both air and water vapour, yet repels water-based liquids and aerosols. It offers an excellent barrier against fine particles and fibres (down to 1 micron in size), is ultra-low-linting and antistatically treated. Silicon non-added.
Applications for Tyvek® 600 Plus garments include maintenance and dismantling jobs in the nuclear industry, pharmaceutical manufacturing or in research and biosecurity laboratories, as well as in medical applications and when exposed to biological hazards.

  • Certified according to Regulation (EU) 2016/425
  • Chemical protective clothing, Category III, Type 4-B, 5-B and 6-B
  • EN 14126 (barrier to infective agents)
  • Antistatic treatment (EN 1149-5) - on both sides
  • Stitched and over-taped seams for protection and strength
  • Tyvek® zipper and zipper flap for enhanced protection
  • Face, wrist and ankle tunnelled elastication, for good fit and contamination/linting reduction

ADDITIONAL EQUIPMENT NEEDED

SIZES

Fabric & Permeation/Penetration Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result EN
Abrasion Resistance 7 EN 530 Method 2 >100 cycles 2 of 6 1
Basis Weight DIN EN ISO 536 41.5 g/m2 N/A
Bursting Strength (Mullenburst) ISO 2758 >10 280 kPa N/A
Colour N/A White N/A
Exposure to high Temperature N/A Melting point ˜135 °C N/A
Exposure to low Temperature N/A Flexibility retained down to -73 °C N/A
Flex Cracking Resistance 7 EN ISO 7854 Method B >100000 cycles 6 of 6 1
Flex Cracking Resistance at -30 °C EN ISO 7854 Method B >4000 cycles N/A
Puncture Resistance EN 863 >10 N 2 of 6 1
Resistance to water penetration DIN EN 20811 >10 kPa N/A
Surface Resistance at RH 25%, inside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Surface Resistance at RH 25%, outside 7 EN 1149-1 < 2,5 • 109 Ohm N/A
Tensile Strength (MD) DIN EN ISO 13934-1 >60 N 2 of 6 1
Tensile Strength (XD) DIN EN ISO 13934-1 >60 N 2 of 6 1
Thickness DIN EN ISO 534 140 µm N/A
Trapezoidal Tear Resistance (MD) EN ISO 9073-4 >10 N 1 of 6 1
Trapezoidal Tear Resistance (XD) EN ISO 9073-4 >10 N 1 of 6 1
  •  According to EN 14325
  •  According to EN 14126
  •  According to EN 1073-2
  •  According to EN 14116
  •   According to EN 11612
  •  Front Tyvek ® / Back
  •  Based on test according to ASTM D-572
  •  See Instructions for Use for further information, limitations and warnings
  •  Larger than
  •  Smaller than
  •  Smaller than or equal to
  •  Not Applicable
  •  Standard Deviation

GARMENT PERFORMANCE

COMFORT

PENETRATION AND REPELLENCY

BIOLOGICAL BARRIER

CLEANLINESS

WARNING

PERMEATION DATA
